Ultra Stream HDMI

Captures one of the followings Capture HDMI + embedded audio Loop-through HDMI signal Audio input via mic Extract HDMI embedded audio output via headphones Support 4Kp60 4:2:0 input. Capture from the newest game consoles such as PS4 Pro and XBOX One S. Automatically down scale to 2K for recording or streaming

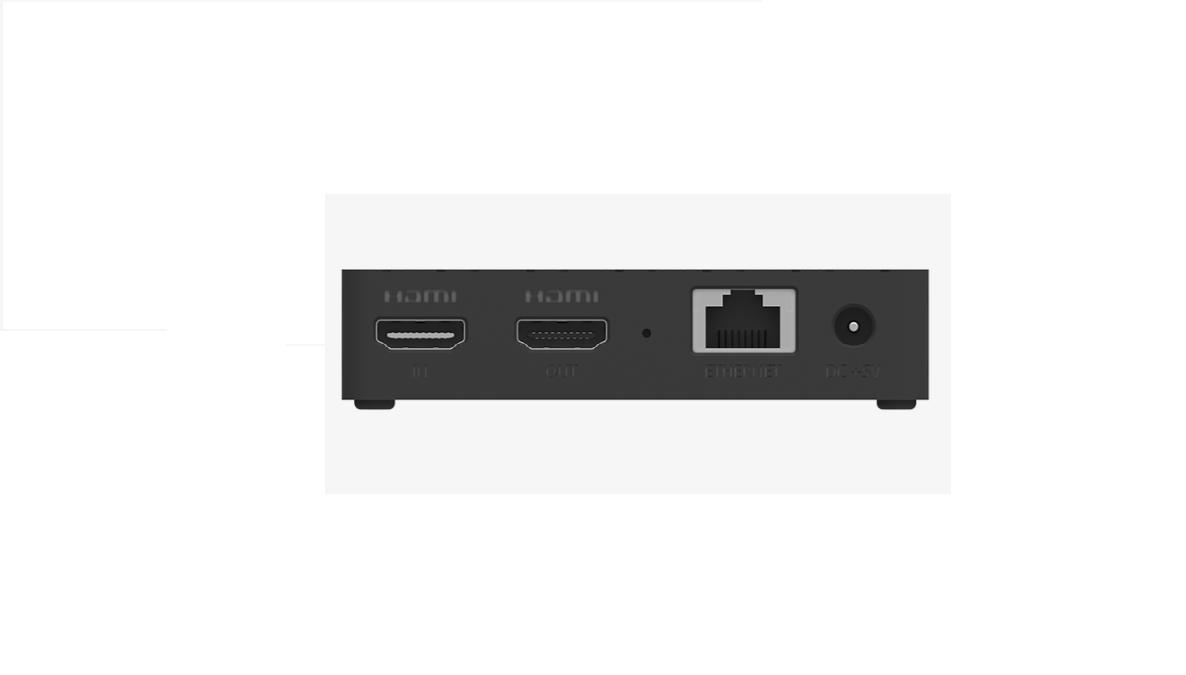

Interface

Video input interface

HDMI x1
Support up to 4096×2160p60

Loop-through Interface

HDMI x1
Support up to 4096×2160p60

USB Interface

USB 2.0 for USB Flash Drive

Audio Interface

Headphone Output
Microphone Input

Network Interface

Ethernet Interface

Power Interface

DC+5V

H.264 Encoding

Main Stream

Up to 1080p60

Sub Stream

Up to 720p30

Software Environment

Mobile OS

Android, iOS

Firmware

Upgradable firmware

Streaming Server

Preset

Youtube Live, Twitch, Facebook Live

Custom

RTMP

Others

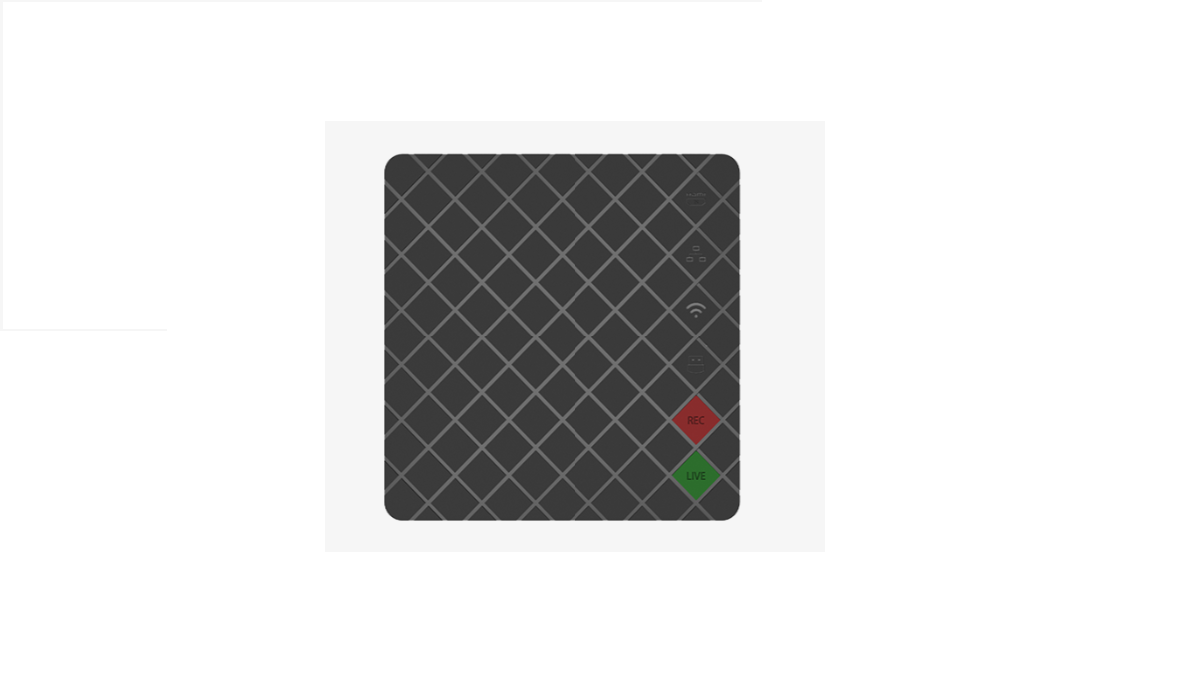

LED Indicators

2-year warranty

Internal SD card
