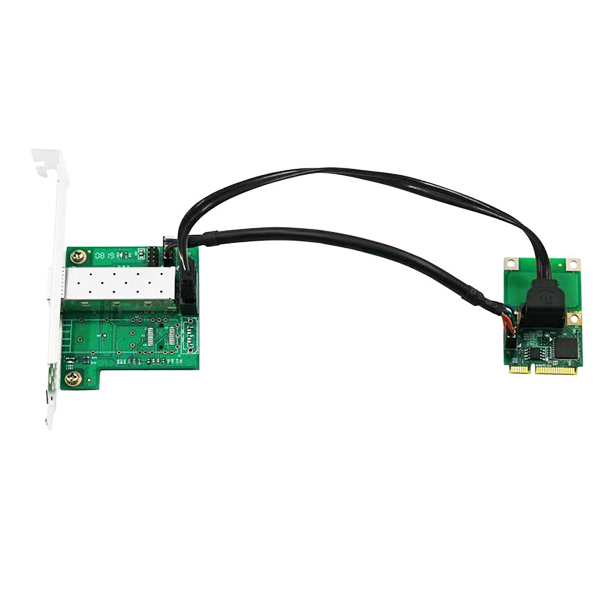

| Model Name | MTN210M-1SFP |
| Controller | Intel i210 |
| Baffle Height | Full height and half height |
| Power Consumption | 1.0W |
| System Support | Windows 7/8/8.1/10 |
| Windows Server 2008 R2/2012 R2/2016 R2/2019 /2019 R2; | |
| Linux Stable Kernel version 2.6.32/3.x/4.x or later; | |
| Linux CentOS/RHEL 6.5 / 7.x or later; | |
| Ubuntu 14.x/15.x/16.x or later; | |
| VMware ESX/ESXi 4.x/5.x/6.x or later | |
| Bus Type | Mini PCIe |
| Data rate supported per port | 1000MbE |
| Connector | 1*SFP |
| Technical Features | |
| Standards compliant | IEEE802.3z 1000BASE-X Gbit/s Ethernet
IEEE 802.3x Full Duplex and flow control IEEE 802.3ad Link aggregation for parallel links IEEE 802.1Q VLAN IEEE 1588 IEEE 802.3az – Energy Efficient Ethernet (EEE) |
| iSCSI | YES |
| WoL | No |
| Jumbo Frames | YES |
| DPDK | Yes |
| PXE | Yes |
| FCoE | No |
| Environment Features | |
| Operating Temperature | 0 ℃ to 55 ℃ (-13 ℉ to 158 ℉) |
| Storage Temperature | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉) |
| Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ |
| Physical Features | |
| Size(mm) | 147*120*21 |
| Weight(g) | 100 |
| LED Indicators | |
| LED Indicators | Yellow Link + Green Blink |
