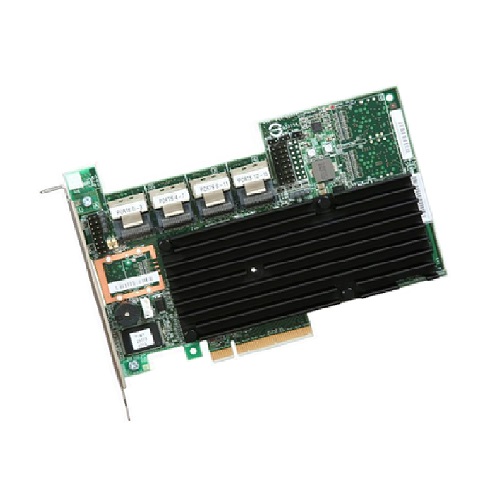

Specification Mode Name 9260-16i Bus Type x8 PCI Express 2.0 Chipset LSI SAS 2108 RAID on Chip (ROC) and LSI SAS 2x36 Expander Cache Memory 512MB 800MHz DDRII SDRAM Internal Ports 16 External Ports N/A RAID levels 0, 1, 5, 6, 10, 50, and 60 Data Transfer Rates Up to 6Gb/s per port Devices Supported Up to 128 SATA and/or SAS devices Internal Connectors 4 Mini-SAS SFF8087 MTBF 927,561 hours OS Compatibility Windows® Vista/2008/Server 2003/2000/XP, Linux®, Solaris™ (x86), Netware®, FreeBSD®, VMware® and more. RAID Management Software MegaRAID Management Suite MegaRAID Storage Manager, StorCLI (command-line interface), WebBIOS Cache Protection LSIiBBU07, an intelligent battery backup module option that connects remotely to the RAID controller Physical Dimensions Half-Length, Full Height (6.6” x 4.376”) Warranty 3 years
| Mode Name | 9260-16i |
| Bus Type | x8 PCI Express 2.0 |
| Chipset | LSI SAS 2108 RAID on Chip (ROC) and LSI SAS 2×36 Expander |
| Cache Memory | 512MB 800MHz DDRII SDRAM |
| Internal Ports | 16 |
| External Ports | N/A |
| RAID levels | 0, 1, 5, 6, 10, 50, and 60 |
| Data Transfer Rates | Up to 6Gb/s per port |
| Devices Supported | Up to 128 SATA and/or SAS devices |
| Internal Connectors | 4 Mini-SAS SFF8087 |
| MTBF | 927,561 hours |
| OS Compatibility | Windows® Vista/2008/Server 2003/2000/XP, Linux®, Solaris™ (x86), Netware®, FreeBSD®, VMware® and more. |
| RAID Management Software |
MegaRAID Management Suite MegaRAID Storage Manager, StorCLI (command-line interface), WebBIOS |
| Cache Protection | LSIiBBU07, an intelligent battery backup module option that connects remotely to the RAID controller |
| Physical Dimensions | Half-Length, Full Height (6.6” x 4.376”) |
| Warranty | 3 years |
