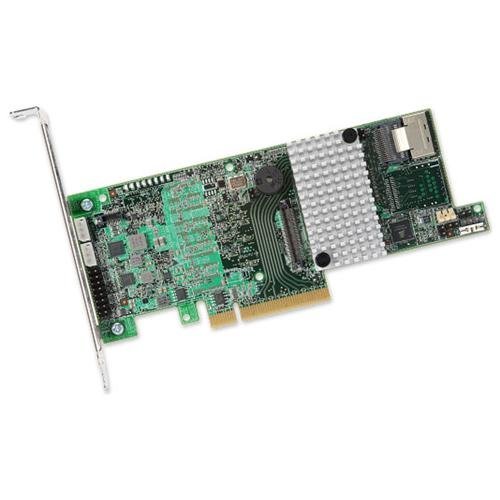

Specification Mode Name 9271-4i Bus Type x8 PCI Express 3.0 Chipset LSISAS2208 Dual-Core RAID on Chip (ROC) Cache Memory 1GB 1333MHz DDRIII SDRAM Internal Ports 4 External Ports N/A RAID levels 0, 1, 5, 6, 10, 50, and 60 Data Transfer Rates Up to 6Gb/s per port Devices Supported Up to 128 SAS and/or SATA drives Internal Connectors 1 HD Mini-SAS SFF8087 MTBF 1,031,514 hours OS Compatibility Windows® Vista/2008/Server 2003/2000/XP, Linux®, Solaris™ (x86), Netware®, FreeBSD®, VMware® and more. RAID Management Software MegaRAID Storage Manager, StorCLI (command-line interface), CTRL-R (BIOS configuration utility), HII (UEFI Human Interface Infrastructure) Cache Protection Optional CacheVault Flash Module (LSICVM02) Includes CVFM04, CVPM0Optional MegaRAID CacheVault Flash cache protection module (LSICVM01) Optional MegaRAID LSIiBBU09 intelligent battery backup module (LSIiBBU09)2, mounting clip, and cable Physical Dimensions MD2 Low profile (6.6" x 2.536") Warranty 3 years
| Mode Name | 9271-4i |
| Bus Type | x8 PCI Express 3.0 |
| Chipset | LSISAS2208 Dual-Core RAID on Chip (ROC) |
| Cache Memory | 1GB 1333MHz DDRIII SDRAM |
| Internal Ports | 4 |
| External Ports | N/A |
| RAID levels | 0, 1, 5, 6, 10, 50, and 60 |
| Data Transfer Rates | Up to 6Gb/s per port |
| Devices Supported | Up to 128 SAS and/or SATA drives |
| Internal Connectors | 1 HD Mini-SAS SFF8087 |
| MTBF | 1,031,514 hours |
| OS Compatibility | Windows® Vista/2008/Server 2003/2000/XP, Linux®, Solaris™ (x86), Netware®, FreeBSD®, VMware® and more. |
| RAID Management Software |
MegaRAID Storage Manager, StorCLI (command-line interface), CTRL-R (BIOS configuration utility), HII (UEFI Human Interface Infrastructure) |
| Cache Protection | Optional CacheVault Flash Module (LSICVM02) Includes CVFM04, CVPM0Optional MegaRAID CacheVault Flash cache protection module (LSICVM01)
Optional MegaRAID LSIiBBU09 intelligent battery backup module (LSIiBBU09)2, mounting clip, and cable |
| Physical Dimensions | MD2 Low profile (6.6″ x 2.536″) |
| Warranty | 3 years |
