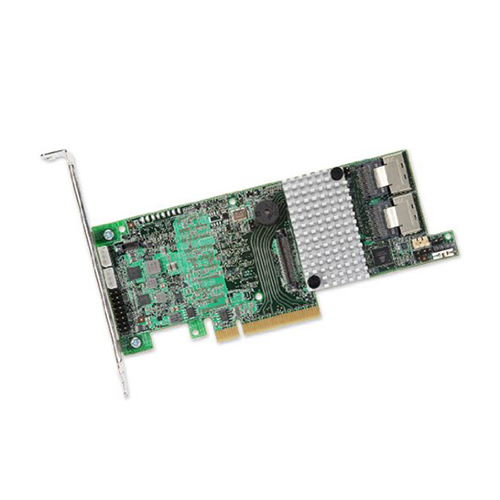

MegaRAID SAS 9271-8i SAS 6G/s 8PORT int SAS/SATA PCI-e3.0 RAID

MegaRAID SAS 9271-8i SAS 6G/s 8PORT int SAS/SATA PCI-e3.0 RAID

Datacenter, cloud and high-performance computing environments need storage capacity to handle massive volumes of data, and must provide data protection and performance to meet the needs of applications and end users. The MegaRAID® SAS 9271-8i 6Gb/s SAS and SATA RAID Controller Card delivers performance and RAID data protection for a wide range of server storage applications.
  • Connect up to 128 SATA or SAS drives with eight internal 6 Gb/s SATA and SAS ports
  • Fit into rack-mounted servers with low-profile form factor and side-mounted SAS connectors
  • Bandwidth to support critical applications with PCIe® 3.0 connectivity
  • Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60
  • Add more protection and peace of mind with optional CacheVault® flash cache protection and heat-tolerant battery backup cache protection modules
Mode Name 9271-8i
Bus Type x8 PCI Express 3.0
Chipset LSISAS2208 Dual-Core RAID on Chip (ROC)
Cache Memory 1GB 1333MHz DDRIII SDRAM
Internal Ports 8
External Ports N/A
RAID levels 0, 1, 5, 6, 10, 50, and 60
Data Transfer Rates Up to 6Gb/s per port
Devices Supported Up to 128 SAS and/or SATA drives
Internal Connectors 2 HD Mini-SAS SFF8087
MTBF 1,031,514 hours
OS Compatibility Windows® Vista/2008/Server 2003/2000/XP, Linux®, Solaris™ (x86), Netware®, FreeBSD®, VMware® and more.
RAID Management
Software		 MegaRAID Storage Manager,
StorCLI (command-line interface),
CTRL-R (BIOS configuration utility),
HII (UEFI Human Interface Infrastructure)
Cache Protection Optional MegaRAID CacheVault Flash cache protection module (LSICVM01) Optional MegaRAID LSIiBBU09 intelligent battery backup module (LSIiBBU09)
Physical Dimensions MD2 Low profile (6.6″ x 2.536″)
Warranty 3 years
