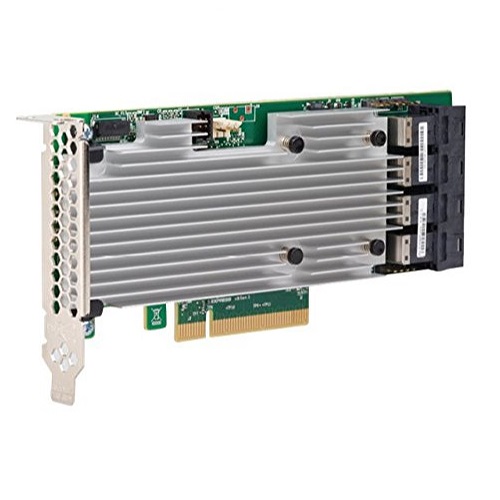

MegaRAID SAS 9361-16i SAS 12G/s 16PORT int SAS/SATA PCI-e x3.0 RAID

Data center, cloud and high-performance computing environments not only require large amounts of storage capacity, they also must provide the data protection and performance today’s applications and end users demand. The MegaRAID SAS 9361-16i 12Gb/s RAID controller card addresses these needs by delivering proven performance and RAID data protection for a range of server storage applications.

Connect up to 16 SATA or SAS drives via direct connection inside the box or up to 240 drives leveraging SAS expander technology
Fit into rack-mounted servers with low-profile form factor and side-mounted SAS connectors
Support critical, high-bandwidth applications with PCIe® 3.0 connectivity
Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60
Add more protection and peace of mind with optional CacheVault® flash cache protection.

Mode Name	9361-16i
Bus Type	x8 PCI Express 3.0
Chipset	SAS3316 dual core RAID on Chip (ROC)
Cache Memory	2GB 1866MHz DDR3 SDRAM
Internal Ports	16
External Ports	N/A
RAID levels	0, 1, 5, 6, 10, 50, and 60
Data Transfer Rates	Up to 12Gb/s per port
Devices Supported	Up to 240 SATA and/or SAS devices
Internal Connectors	4 Mini-SAS HD SFF8643
MTBF	> 2,500,000 hours
OS Compatibility	Windows® Vista/2008/Server 2003/2000/XP, Linux®, Solaris™ (x86), Netware®, FreeBSD®, VMware® and more.
RAID Management Software	LSA (LSI Storage Authority), MegaRAID Storage Manager, StorCLI (command-line interface), CTRL-R (BIOS configuration utility), HII (UEFI Human Interface Infrastructure)
Cache Protection	Optional CacheVault Module (CVPM02)
Physical Dimensions	6.127” x 2.712” (Low profile)
Warranty	3 years
