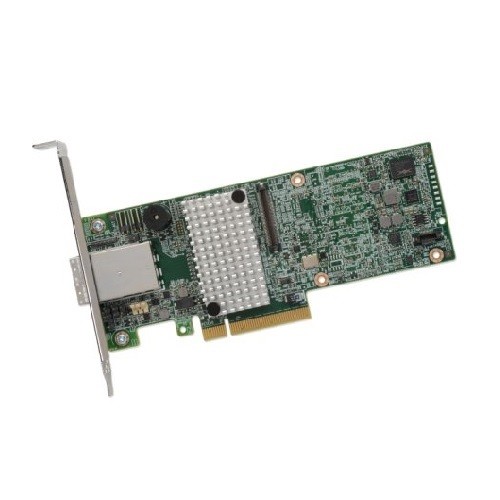

MegaRAID SAS 9380-8e SAS 12G/s 8PORT ext SAS/SATA PCI-e3.0 RAID

MegaRAID SAS 9380-8e SAS 12G/s 8PORT ext SAS/SATA PCI-e3.0 RAID

Hyperscale, datacenter, and high-performance computing environments not only require large amounts of storage capacity, they also must provide the data protection and performance today’s applications and end users demand. The MegaRAID® SAS 9380-8e 12Gb/s SAS and SATA RAID controller card helps address these needs by delivering proven performance and RAID data protection for a range of server storage applications
  • Connect up to 240 SATA or SAS drives with eight external 12Gb/s SAS ports
  • Provides external JBOD expansion and RAID data protection to address a wide range of storage performance and capacity requirements.
  • Support critical, high-bandwidth applications with PCIe® 3.0 connectivity
  • Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60
  • Add more protection and peace of mind with optional CacheVault® flash cache protection.
Mode Name 9380-8e
Bus Type x8 PCI Express 3.0
Chipset LSISAS3108 dual core RAID on Chip (ROC)
Cache Memory 1GB 1866MHz DDRIII SDRAM
Internal Ports N/A
External Ports 8
RAID levels 0, 1, 5, 6, 10, 50, and 60
Data Transfer Rates Up to 12Gb/s per port
Devices Supported Up to 240 SAS and/or SATA drives
Internal Connectors N/A
External Connectors 2 Mini-SAS HD SFF8644
MTBF 1,203,345  hours
OS Compatibility Windows® Vista/2008/Server 2003/2000/XP, Linux®, Solaris™ (x86), Netware®, FreeBSD®, VMware® and more.
RAID Management

Software

 LSA (LSI Storage Authority),

MegaRAID Storage Manager,

StorCLI (command-line interface),

CTRL-R (BIOS configuration utility),

HII (UEFI Human Interface Infrastructure)
Cache Protection Optional CacheVault Flash Module (LSICVM02) Includes CVFM04, CVPM02, mounting clip, and cable
Physical Dimensions MD2 Low profile (6.6″ x 2.536″)
Warranty 3 years
