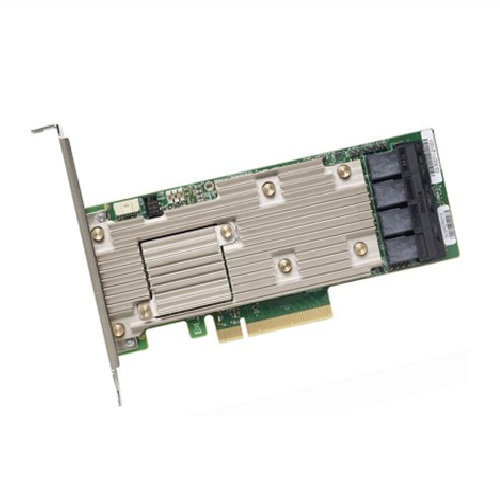

MegaRAID SAS 9460-16i SAS 12G/s 16PORT int SAS/SATA/PCIe (NVMe) PCI-e x3.1 RAID

Data center, cloud and high-performance computing environments not only require large amounts of storage capacity, they also must provide the data protection, flexibility and performance today’s applications and end users demand. The MegaRAID 9460-16i Tri-Mode Storage Adapter is a 12Gb/s SAS/SATA/PCIe (NVMe) controller card that addresses these needs by delivering proven performance and RAID data protection for a range of high-end server storage applications. Broadcom’s Tri-Mode SerDes Technology enables the operation of NVMe, SAS or SATA devices in a single drive bay, allowing for endless design flexibility.

Connect up to 240 SAS/SATA devices or 24 NVMe devices per controller
Fits into rack-mounted servers with low-profile form factor and side-mounted SAS connectors
Support critical, high-bandwidth applications with PCIe^® 3.1 connectivity
Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60
Add more protection and peace of mind with CacheVault^® flash cache protection

Mode Name	9460-16i
Bus Type	x8 lane PCI Express® 3.1
Chipset	SAS3516 dual-core RAID-on-Chip (ROC)
Cache Memory	4GB 2133 MHz DDR4 SDRAM
Internal Ports	16
External Ports	N/A
RAID levels	0, 1, 5, 6, 10, 50, and 60
Data Transfer Rates	Up to 12Gb/s per port
Devices Supported	Up to 240 SAS/SATA devices or 24 NVMe devices
Internal Connectors	4 Mini-SAS HD x4 SFF-8643
OS Compatibility	Windows® Vista/2008/Server 2003/2000/XP, Linux®, Solaris™ (x86), Netware®, FreeBSD®, VMware® and more.
RAID Management Software	LSA (LSI Storage Authority), MegaRAID Storage Manager, StorCLI (command-line interface), CTRL-R (BIOS configuration utility), HII (UEFI Human Interface Infrastructure)
Cache Protection	Optional CacheVault Module (CVPM05)
Physical Dimensions	6.127” x 2.712” (Low profile)
Warranty	3 years
