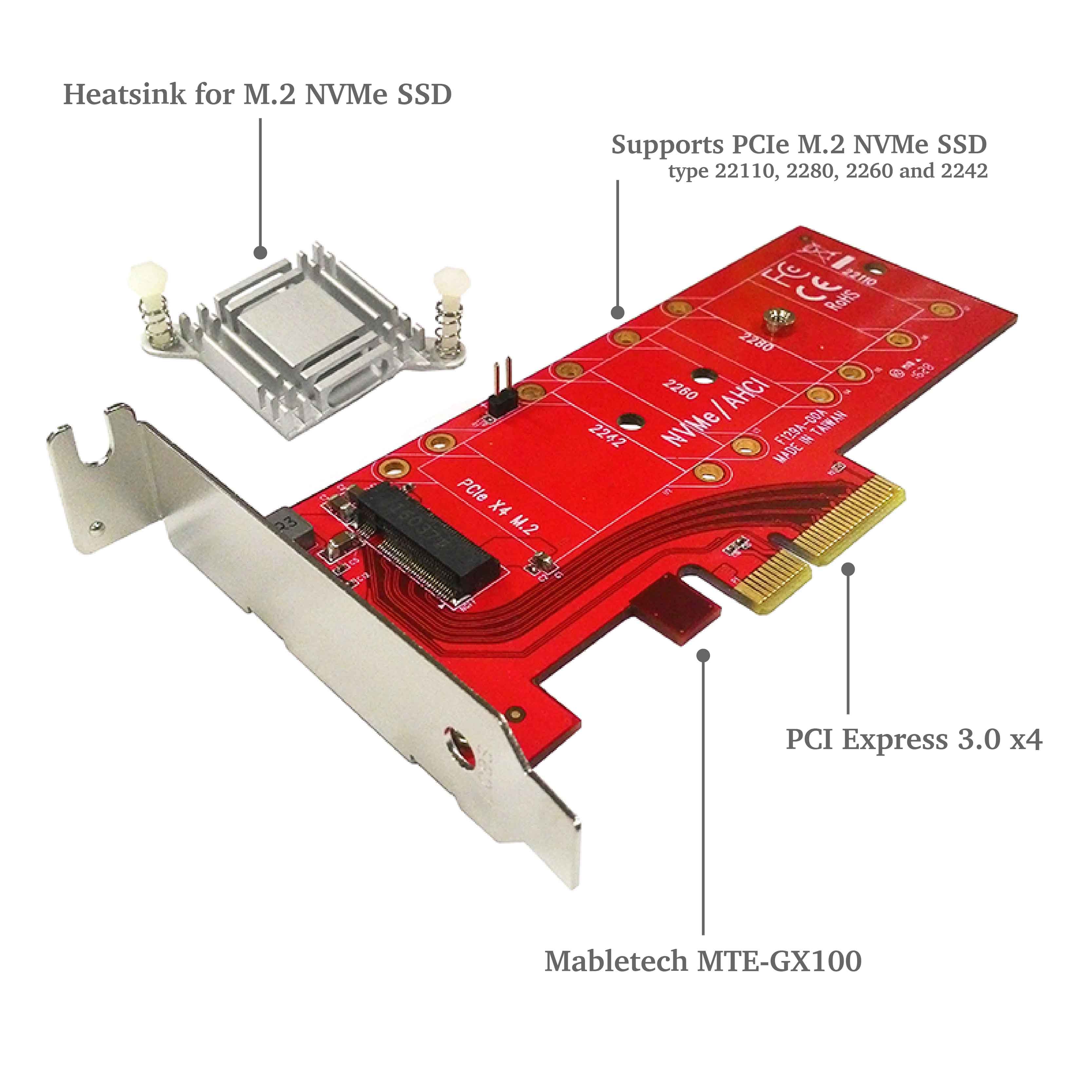

MTE-GN100 M.2 NVMe SSD to PCIe 3.0 x4 Adapter-Aldeno

PCIe 3.0 x4 NVMe and PCIe-AHCI M.2 SSD work in main board PCIe x4 bus slot
PCI Express 3.0 x4 Lane Host adapter
Supports PCIe Gen3 and PCIe Gen2 M.2 NGFF 110mm, 80mm, 60mm, 42mm NVMe SSD
2 NGFF type 22110-D5-M M Key socket on board
Movable M.2 NGFF stand-off and multiple plated-holes supports type 22110, 2280, 2260 and 2242 SSD
Supports PCIe 3.0, PCIe 2.0 motherboard
Supports dual-sided SSD module 1.5mm component height on the top and bottom side
Compliant with PCI Express 3.0
Support PCIe L1 Power Management Substates with CLKREQ
Pin header on board for drive LED connection
Low Profile PCIe Form Factor and Low PCIe bracket on board
Additional Regular size bracket included in the package
Windows 10, Win8.1, Windows Server 2012 R2, Linux series, Fedora, SUSE, Ubuntu, Red Hat native driver support PCIe-NVMe & PCIe-AHCI SSD, no driver required
Follow Microsoft Update ( https://support.microsoft.com/en-us/kb/2990941) to fix PCIe-NVMe native driver in Win7 or Win Server 2008 R2
Mac Pro 2009, 2010 and 2012 models with High Sierra OS installed support PCIe-NVMe SSD
Supports operating temperature range: -40 – 80 ºC
Provides 3.3V5A High Power to M.2 PCIe SSD
Provides Multiple mounting holes option of heat sink installation of SSD controller
Includes heat sink to low NVMe SSD controller temperature

Mode Name	MTE-GX100
Bus Type	PCI Express 3.0 x4
Chipset	N/A
Number of Ports	1-Port M.2 NVMe SSD (Supports type 22110, 2280, 2260 and 2242 SSD)
Transfer Rate	N/A
Dimensions	N/A
Operating Temperature	-40°C to 80°C
Storage Temperature	-20°C to 80°C
OS Compatibility	Windows 2000/XP/2003/Vista/7/8/10, Linux, Mac OS
