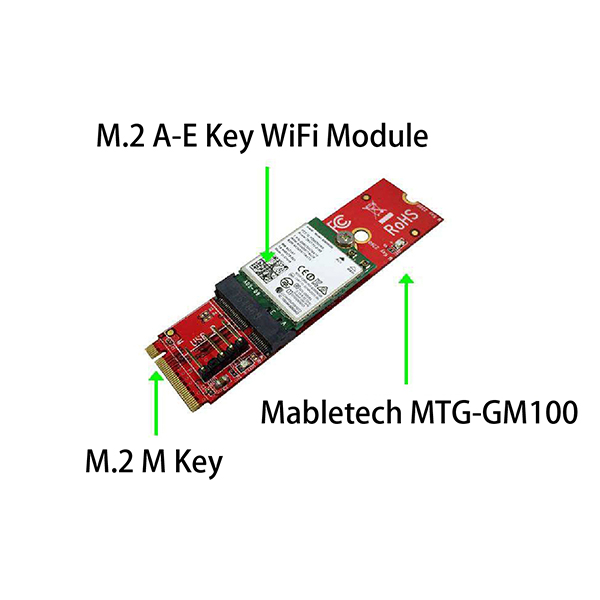

MTG-GM100 M.2 E Key to M Key Adapter for M.2 WiFi Module

• M.2 NGFF type 2280-D5-M M Key notch 75Pin 80mm PCBA module
• PCIe x1 signal interface from main board M.2 M-Key slot
• USB2.0 signal interface from main board USB port to M.2 E Key socket
• M.2 type 2230-D3-E E Key socket on board
• Support 1630/2230/3030 M.2 E Key and A-E Key WiFi, Bluetooth and Dual Band Wireless Module
• 100% OS-transparent hardware bridge converter to support Windows, MAC and Linux
• Supports operating temperature range: -40 – 80 ºC
• Includes USB 5Pin-to-4Pin Cable for USB 2.0 signal interface from main board
• Require an empty M.2 M-Key slot and USB2.0 port in computer
• RoHS Compliant

*** Most M.2 WiFi module use PCIe interface, Bluetooth module uses USB interface, and Dual Band Wireless Module use both PCIe + USB interface
