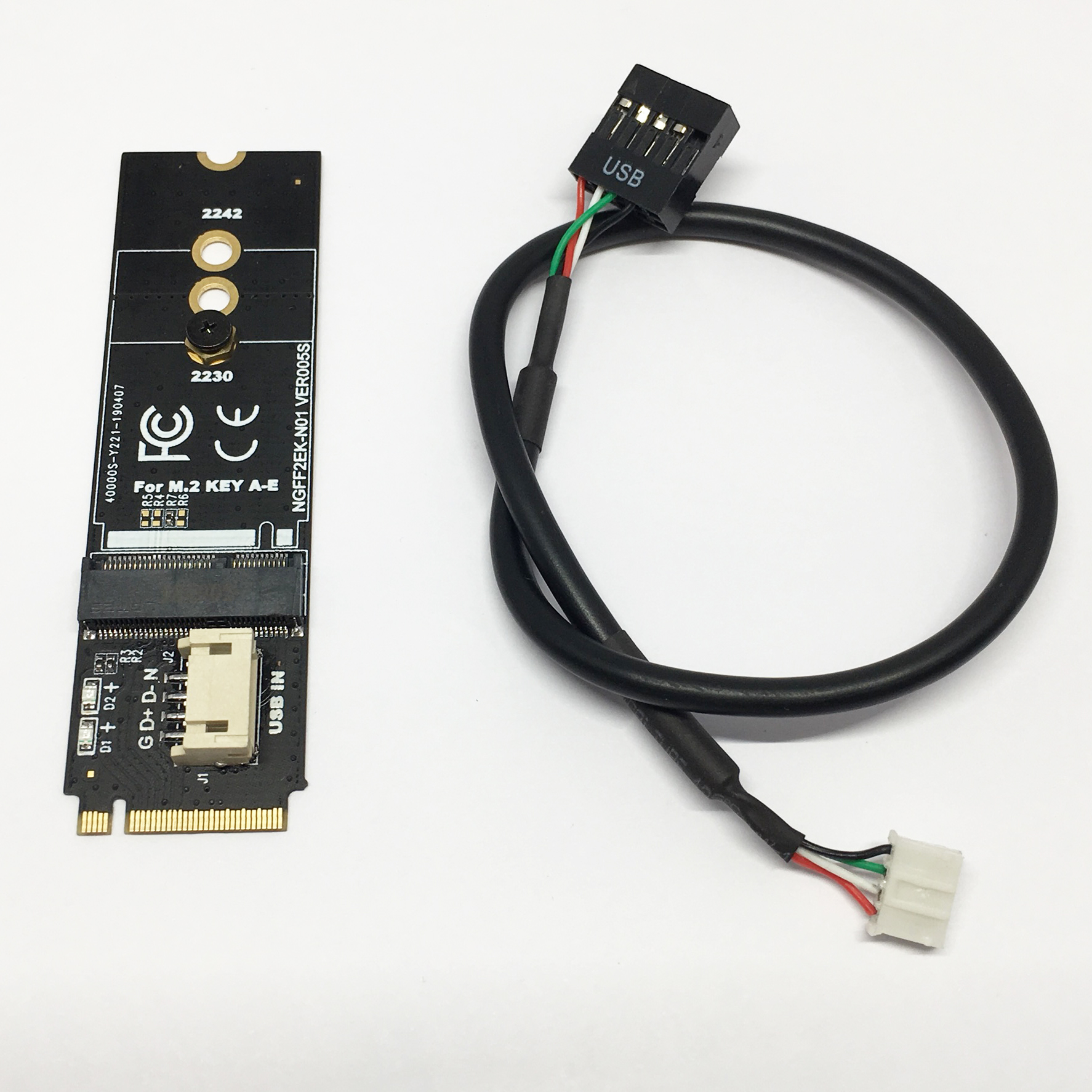

MTG-GM200 M.2 E Key to M Key Adapter for M.2 WiFi Module

MTG-GM200 M.2 E Key to M Key Adapter for M.2 WiFi Module

Utilize M.2 E Key or A-E Key Module (like WiFi, Bluetooth or Dual Band Wireless Module) in Embedded Computer M Key Socket!
  • PCIe x1 signal interface from main board M.2 M-Key slot
  • USB2.0 signal interface from main board USB port to M.2 E Key socket
  • 100% OS-transparent hardware bridge converter to support Windows, MAC and Linux
  • Includes Cable for USB 2.0 signal interface from main board
  • Require an empty M.2 M-Key slot and USB2.0 port in computer

*** Most M.2 WiFi module use PCIe interface, Bluetooth module uses USB interface, and Dual Band Wireless Module use both PCIe + USB interface

Model Name MTG-GM200
Bus Type M.2 M Key
Chipset N/A
Number of Ports 1x M.2 E Key type 2230/2242 socket
Transfer Rate N/A
Dimensions N/A
Operating Temperature -40ºC to 80ºC
Storage Temperature -20°C to 80°C
OS Compatibility Windows 2000/XP/2003/Vista/7/8/10, Linux, Mac OS
