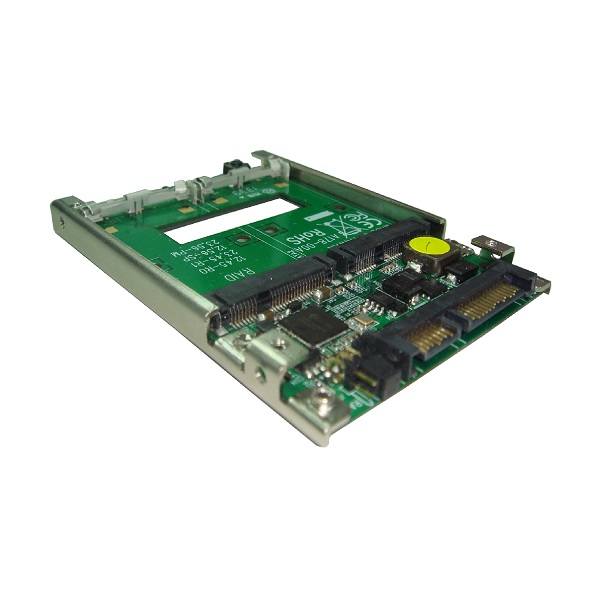

MT2-MX200R H/W RAID 2x mSATA SSD to 2.5” 7mm SATA III SSD-Aldeno

6Gbps SATA III H/W RAID Controller
Convert 2x Full Size SATA III (6Gbps) mSATA SSD to 7mm 2.5” drive
Supports SATA I, SATA II, SATA III Host port
Supports H/W RAID 1, SPAN (Big Drive) and PM (2Drives) Modes
Not support PM (2Drives) Mode if SATA I or no Port Multiplier compatible SATA Host connection
Supports SATA hot plug
100% Compatible with 2.5” SATA drive mechanical spec
22 pin SATA (Signals and Power) male connector on board
The mSATA SSD can be the primary bootable device containing the OS and application.
Latch type mSATA connector on board, no need the screw to retain mSATA SSD
Transparent to the operating system, no driver required on Windows, Mac and Linux
Hardware Jumper and Windows & Mac software GUI for RAID mode configuration
Provides Windows and Mac GUI to configure RAID modes and monitor RAID status
Includes 7mm height 2.5 “ drive metal frame with 8 mounting holes and 4 HDD screws
Dimension of PCBA with 2.5” frame : 100.45mm x 69.85mm x 7mm
Fully RoHS compliant
