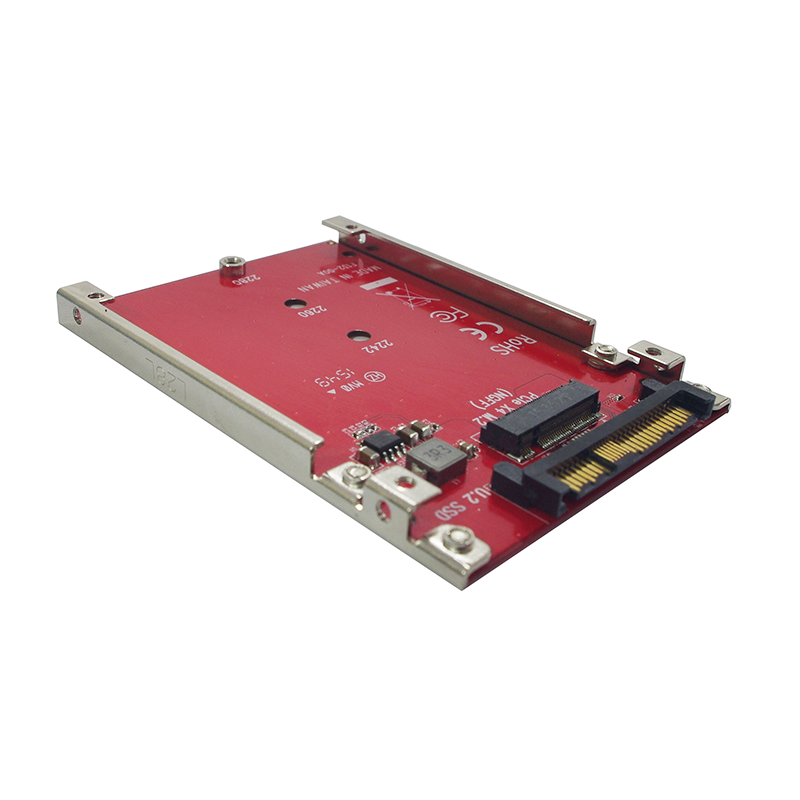

MT2-U2100 NVMe M.2 SSD to NVMe U.2 2.5” SFF-8639 SSD Adapter

MT2-U2100 NVMe M.2 SSD to NVMe U.2 2.5” SFF-8639 SSD Adapter

Install Enterprise-Class High Performance PCIe Gen3 x4 M.2 NVMe SSD and become a 2.5” U.2 68Pin SFF-8639 SSD!
  •  Convert PCIe-NVMe M.2 SSD to NVMe U.2 2.5” SFF-8639 SSD
  • Compliant with PCI Express 3.0 x4 Lane
  • 2 NGFF type 2280-D5-M M Key socket on board
  • Supports PCIe Gen3 x4 M.2 80mm, 60mm, 42mm NVMe SSD
  • 68Pin U.2 SFF-8639 interface to PCIe-NVMe Host
  • Support PCIe L1 Power Management Substates with CLKREQ
  • Movable M.2 NGFF stand-off and multiple plated-holes supports type 2280, 2260, 2242  SSD
  • Supports dual-sided SSD module 1.5mm component height on the top and bottom side
  • Includes 2.5 “ drive metal frame with 8 mounting holes and 4 HDD screws
  • Dimension of PCBA with 2.5” frame : 100.45mm x 69.85mm x 7mm
  • Windows 10, Win8.1, Windows Server 2012 R2, Linux series, Fedora, SUSE, Ubuntu, Red Hat native driver support PCIe-NVMe & PCIe-AHCI SSD, no driver required
  • Follow Microsoft Update ( https://support.microsoft.com/en-us/kb/2990941) to fix PCIe-NVMe native driver in Win7 or Win Server 2008 R2
  • Mac Pro 2009, 2010 and 2012 models with High Sierra OS installed support PCIe-NVMe SSD
  • Provides 3.3V5A High Power to M.2 NVMe SSD
  • Fully RoHS compliant
Mode Name MT2-U2100
Bus Type Standard 2.5″ U.2 NVMe SSD
Chipset N/A
Number of Ports 1-Port M.2 SSD (80mm, 60mm, 42mm, 30mm)
Transfer Rate N/A
Dimensions 100.45mm x 69.85mm x 7mm
Operating Temperature -10°C to 70°C
Storage Temperature -20°C to 80°C
OS Compatibility Windows 2000/XP/2003/Vista/7/8/10, Linux, Mac OS
