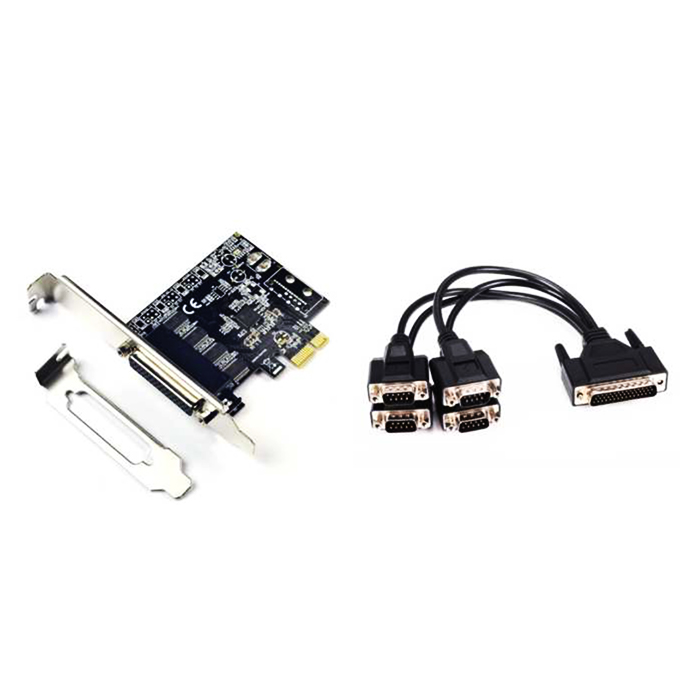

MTA-420 PCI Express 4-Port RS232 Card

The AX99100 is a single chip solution that fully integrates PCIe 2.0 Gen 1 end-point controller and SerDes with a variety of peripherals such as four High Speed Serial Ports, one Parallel Port, I²C Master, High Speed SPI, Local Bus (ISA-Like) , and GPIOs. It consists of four main configurations such as 4S (PCIe to Quad Serial), 2S+1P (PCIe to Dual Serial and Single Parallel), 2S+SPI (PCIe to Dual Serial and SPI), and LB (PCIe to Local Bus/ISA-Like) for different kinds of applications. The AX99100, in 68-pin QFN, are available with RoHS compliant package and supports commercial grade. SPECIFICATIONS Mode Name MTA-420 Bus Type PCI Express Chipset ASIX/AX99100 Number of Ports 4-Serial port Transfer Rate N/A Dimensions N/A Operating Temperature 0°C to 70°C Storage Tem

The AX99100 is a single chip solution that fully integrates PCIe 2.0 Gen 1 end-point controller and SerDes with a variety of peripherals such as four High Speed Serial Ports, one Parallel Port, I²C Master, High Speed SPI, Local Bus (ISA-Like) , and GPIOs.
It consists of four main configurations such as 4S (PCIe to Quad Serial), 2S+1P (PCIe to Dual Serial and Single Parallel), 2S+SPI (PCIe to Dual Serial and SPI), and LB (PCIe to Local Bus/ISA-Like) for different kinds of applications.
The AX99100, in 68-pin QFN, are available with RoHS compliant package and supports commercial grade.

Mode Name	MTA-420
Bus Type	PCI Express
Chipset	ASIX/AX99100
Number of Ports	4-Serial port
Transfer Rate	N/A
Dimensions	N/A
Operating Temperature	0°C to 70°C
Storage Temperature	0°C to 80°C
OS Compatibility	Windows®10(32/64), 8 / 8.1 (32/64), 7 (32/64), Vista(32/64), XP(32/64), 2000 Windows Server® 2012, 2008 R2, 2003(32/64) Linux 2.4.x and later (Tested up to 3.5)
