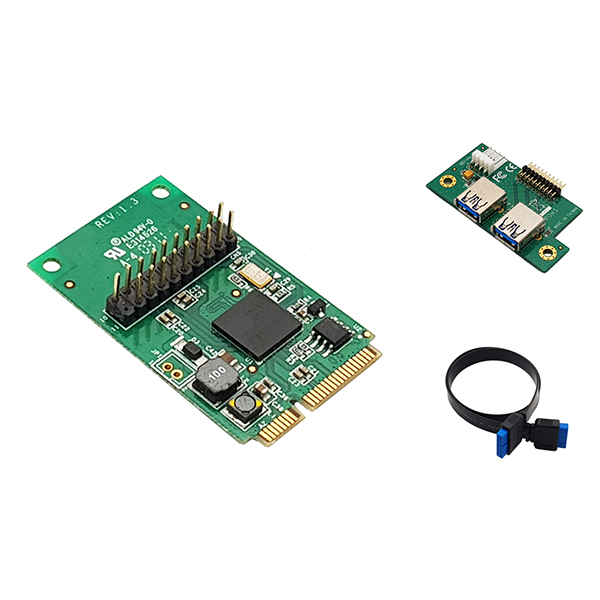

MTM-UB230 miniPCIe 2-PORT USB 3.2 GEN 1 CARD

APPLICATION Upgrade an older MiniPCIe-based system from USB 2.0 to USB 3.0 connectivity Expand the USB capabilities of your system with two additional external ports Connect additional external hard drives, CD/DVD drives, MP3 players, printers, scanners, webcams, game controllers, digital cameras, etc. to a computer system

Provides two external USB 3.0 ports with UASP support
Supports data rates up to 5 Gbps
Optional LP4 power connector provides up to 900mA per USB port
Supports USB Battery Charging Specification 1.2
Fully compliant with USB 3.0 rev 1.0 and Intel xHCI rev 1.0 specifications
Backward compatible with USB 2.0 and USB 1.0/1.1 devices
Includes a Low-Profile/half-height installation bracket

Model Name	MTM-UB230
Bus Type	Mini PCI-e
Chipset	NEC – µPD720202
Number of Ports	2-USB 3.2 Gen 1
Transfer Rate	5Gbps
UASP Support	YES
Operating Temperature	0°C to 70°C
Storage Temperature	-20°C to 85°C
OS Compatibility	Windows® XP Embedded, XP, Vista, 7, 8, 8.1, 10 Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 Mac OS® 10.4 to 10.10 Linux 3.5.x to 4.11.x LTS Versions Only
